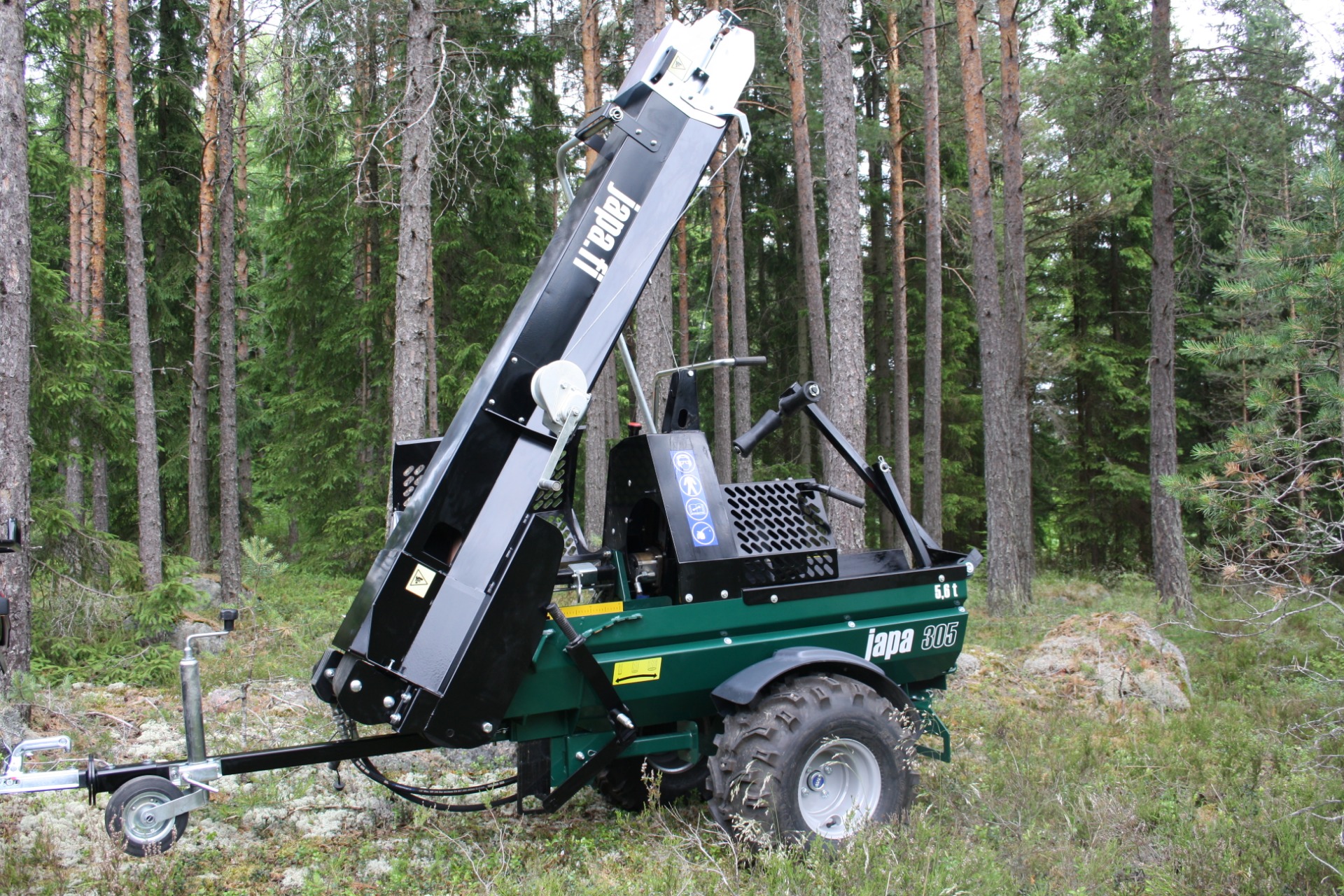

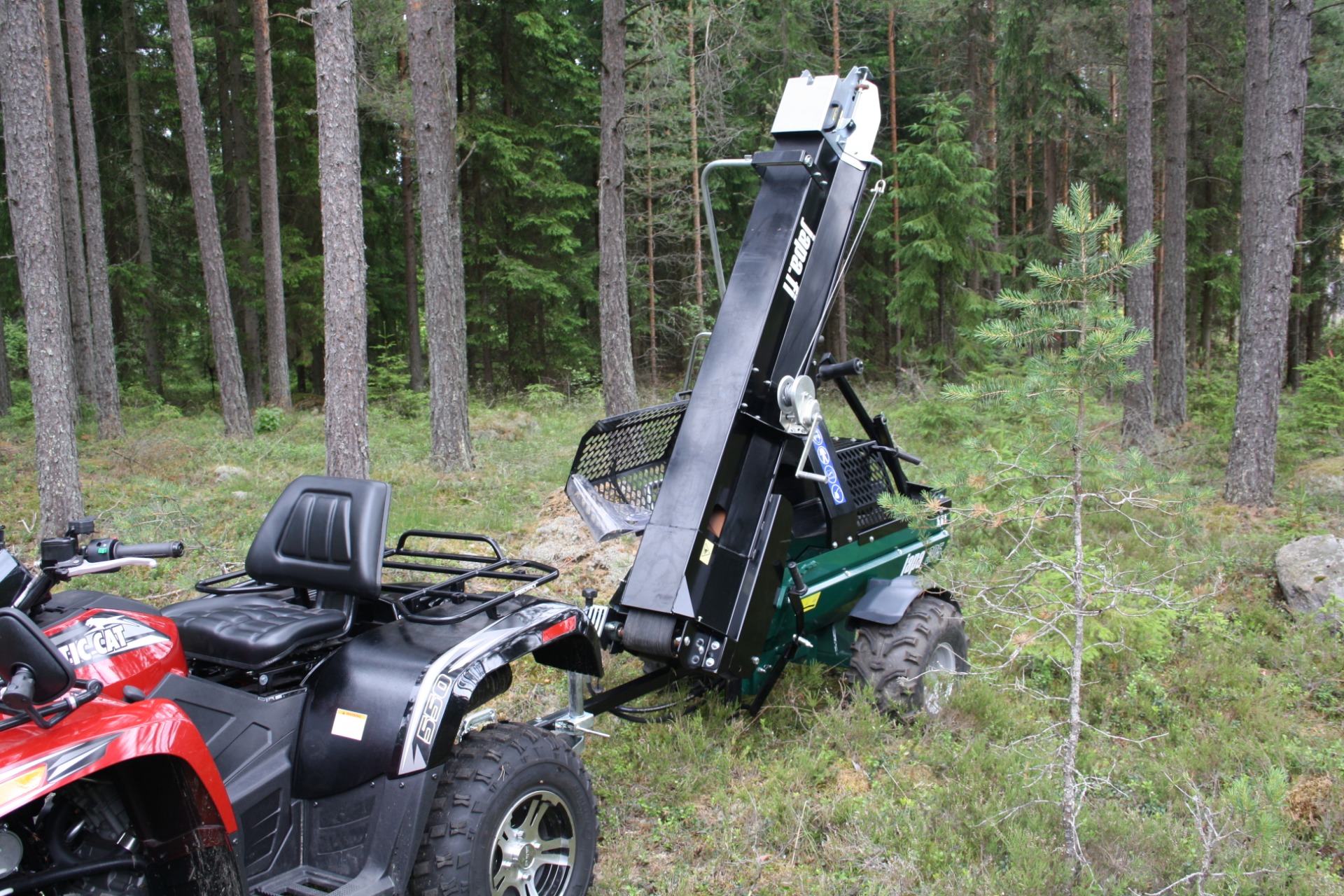

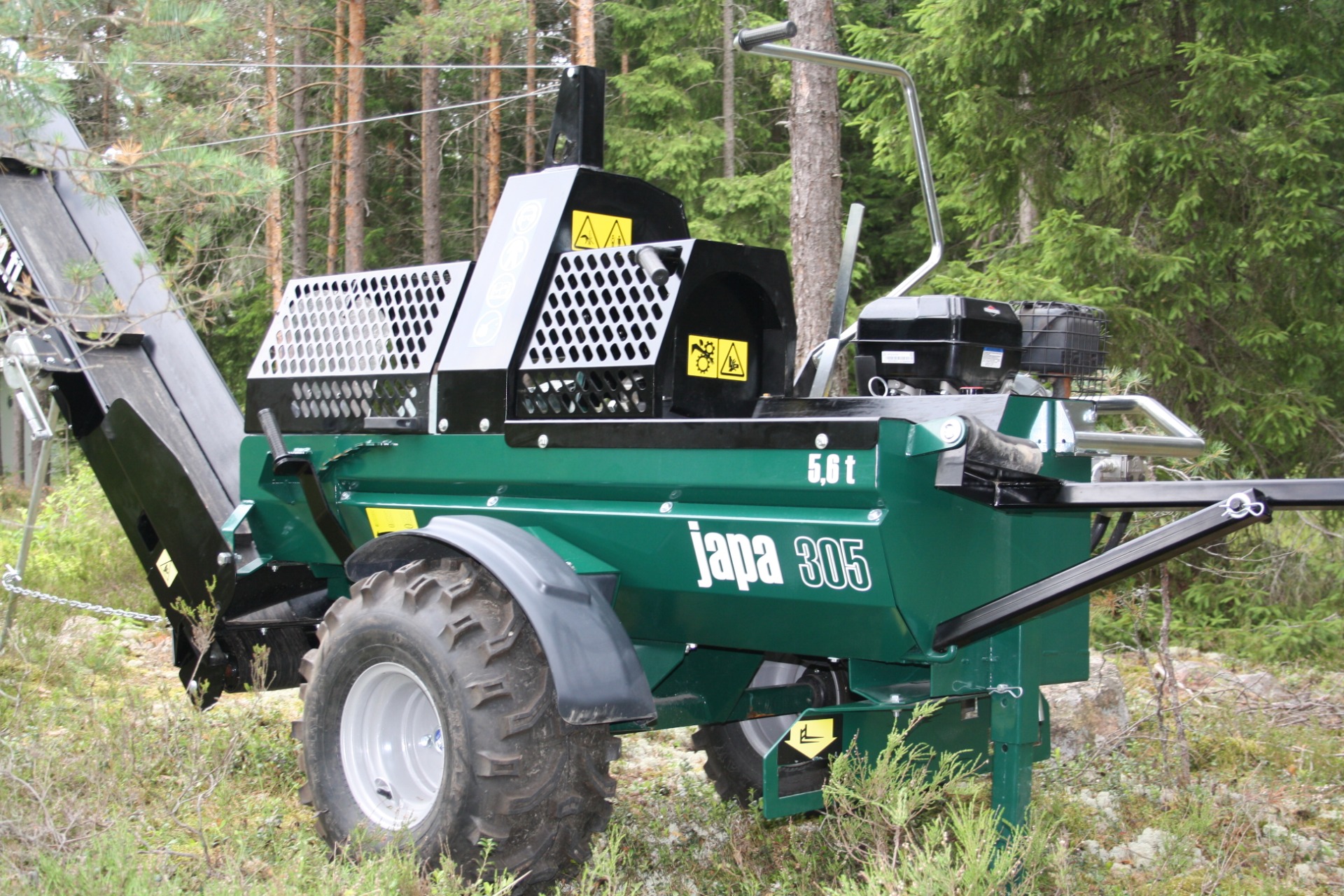

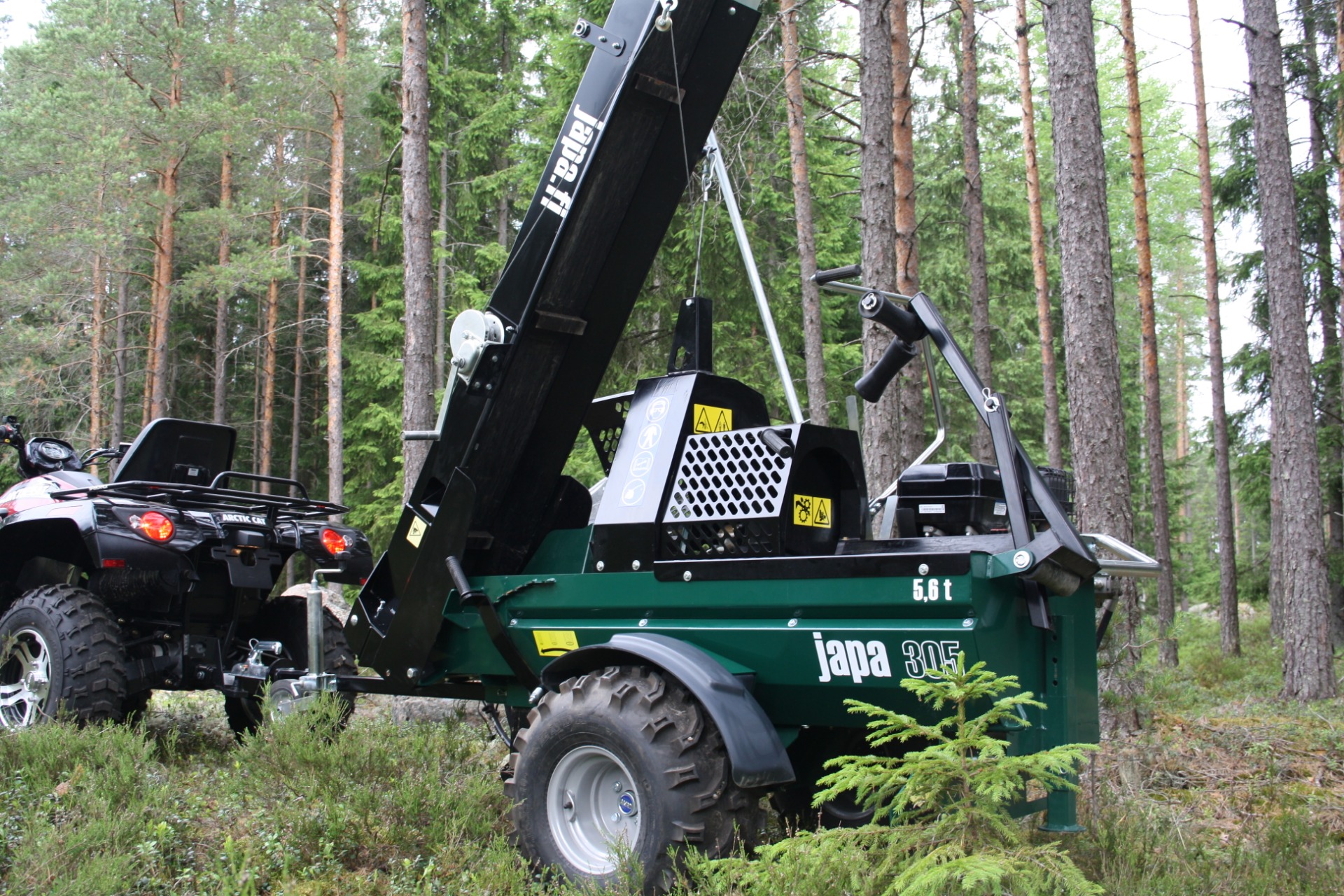

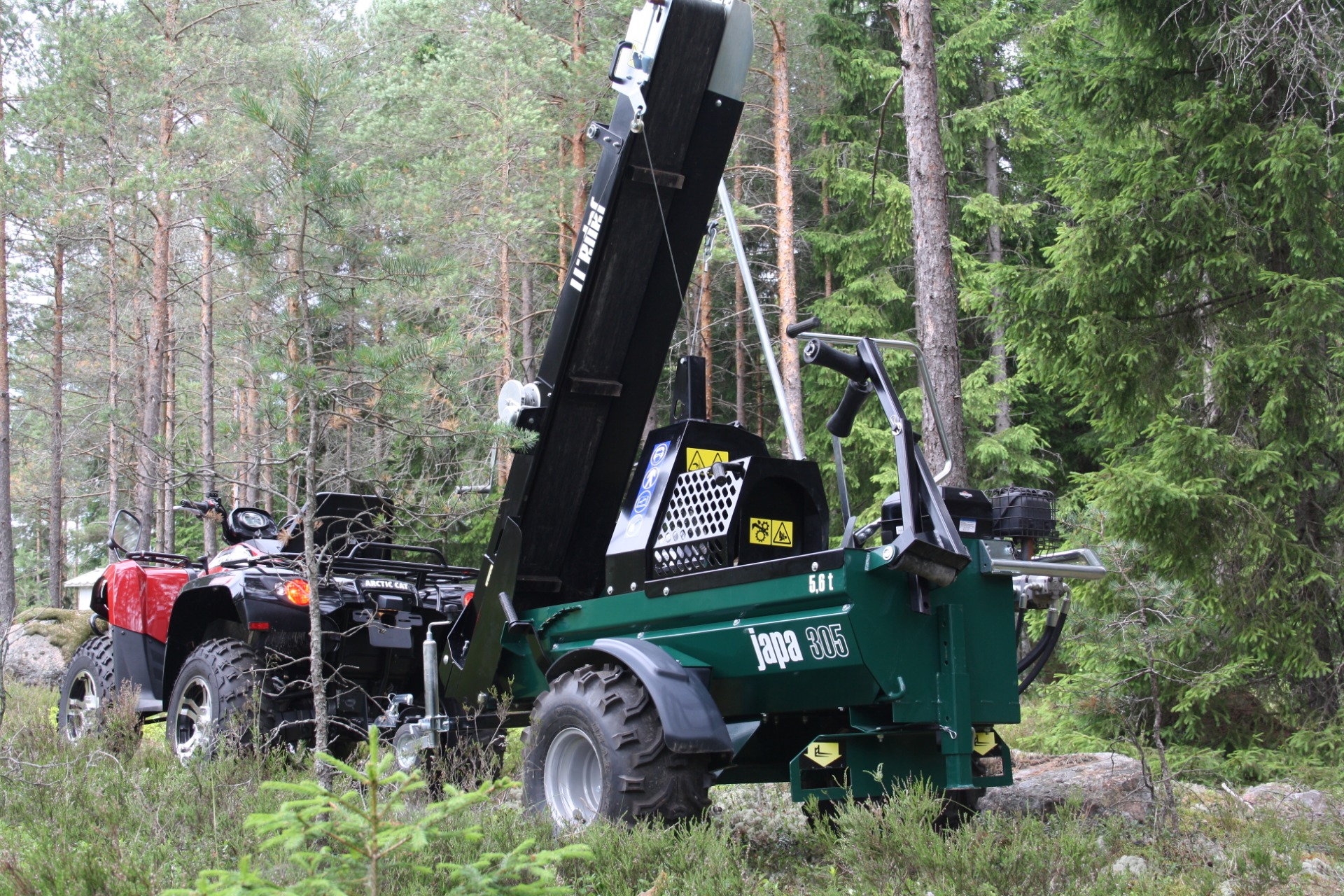

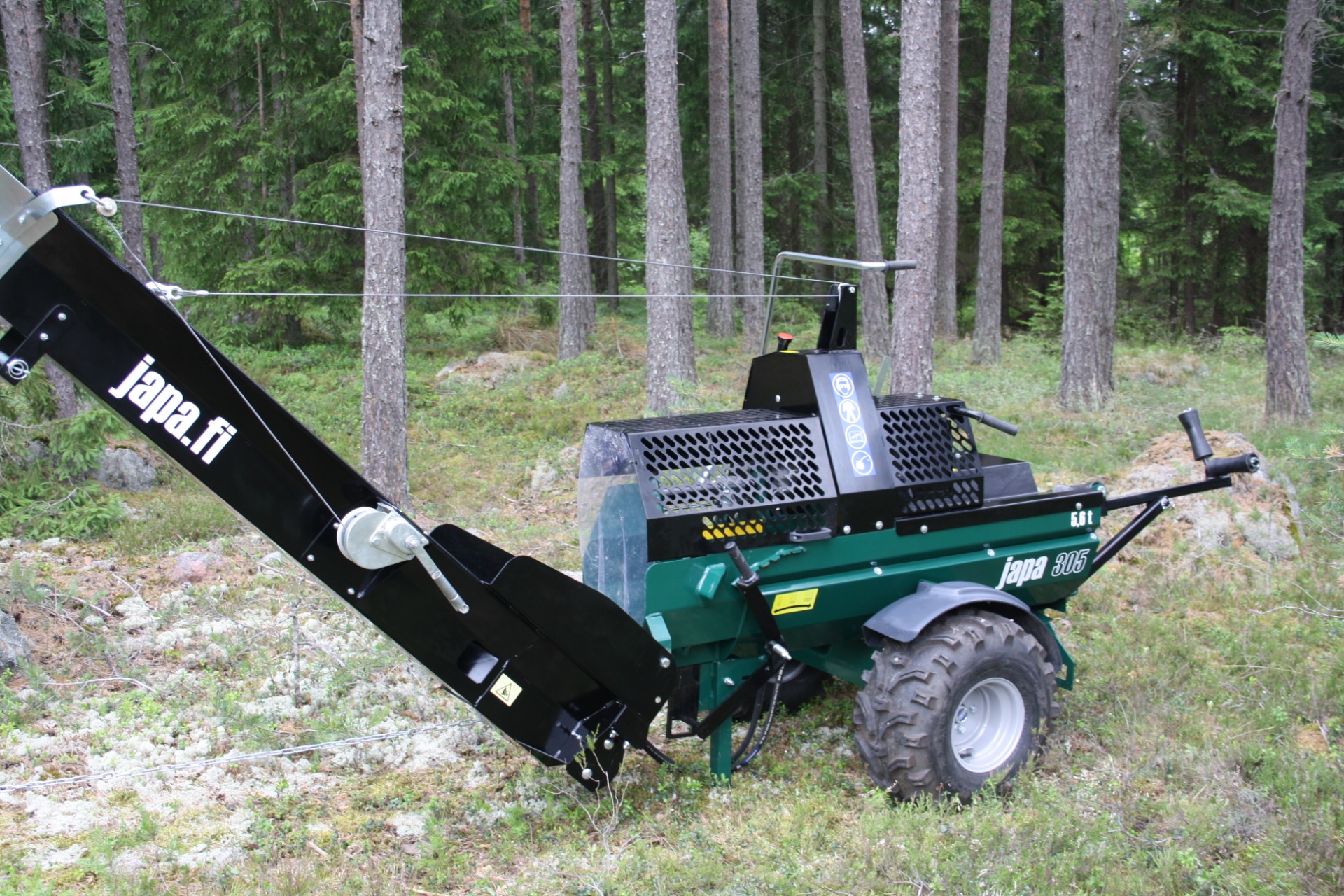

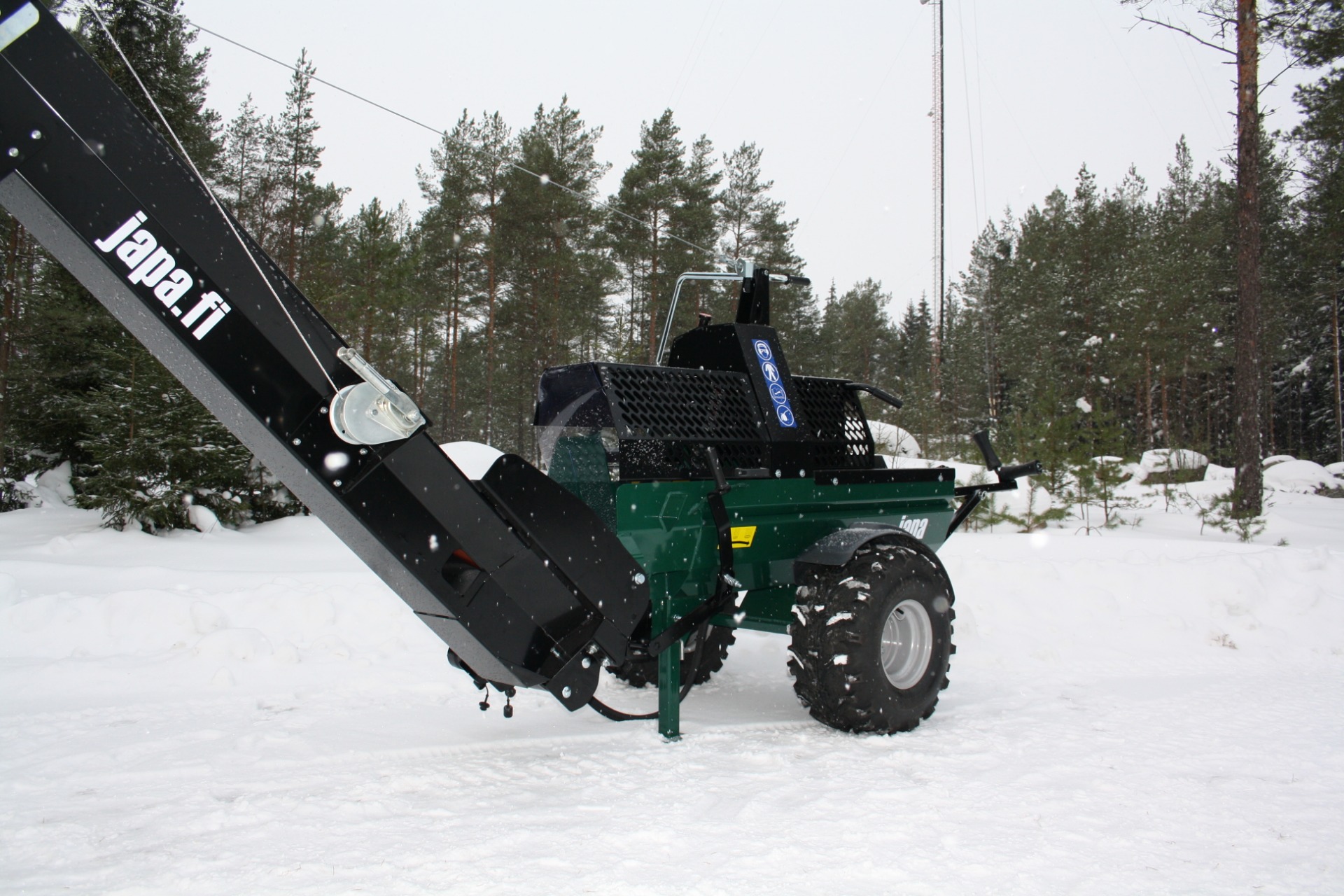

Japa 305 Zaag-Kloofmachine Off road
Japa 305 Zaag-Kloofmachine Voor stammen tot 30 cm

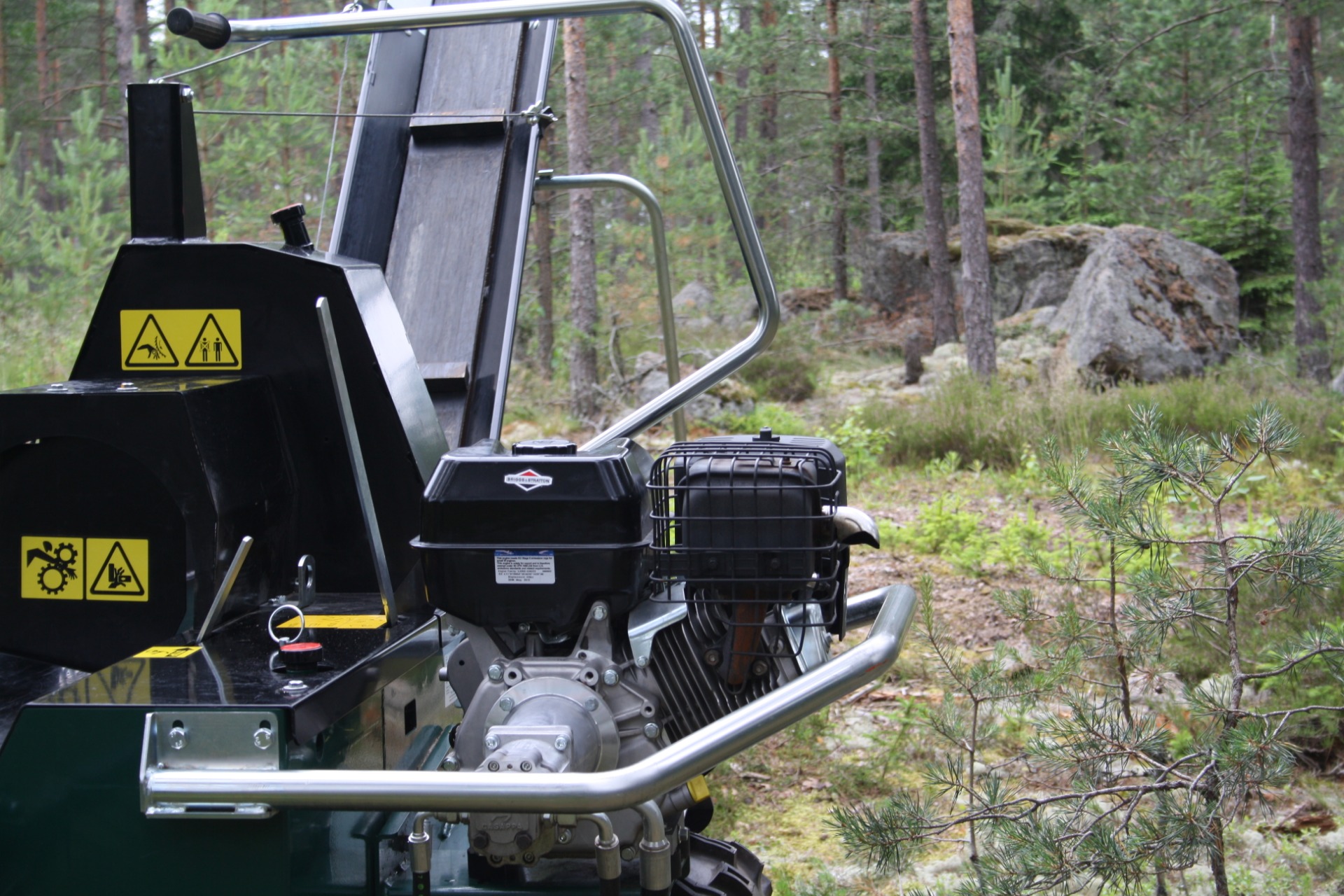

Offroad !!! Met honda 13 pk 4 takt

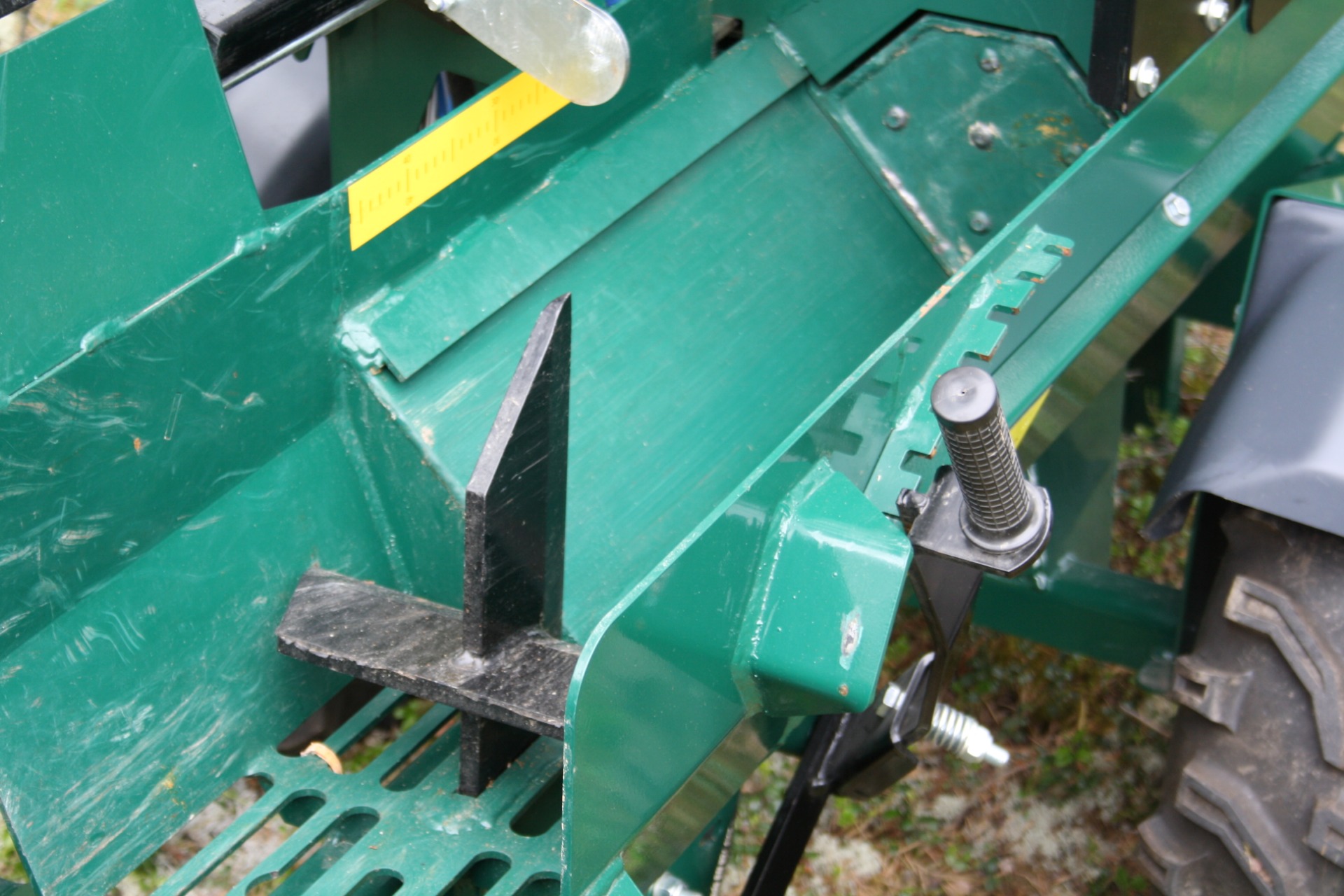

Het assortiment JAPA 305-brandhoutverwerkers is ontworpen voor diegenen die gemakkelijke mobiliteit en moeiteloze bediening van hun machine nodig hebben. Het 305-model wordt geleverd met een hydraulisch aangedreven kettingzaag, die betrouwbaar en geruisloos werkt. De zaagketting draait alleen als het hout wordt gesneden. Het kloven van de stam gebeurt door middel van een hydraulische cilinder die wordt geactiveerd wanneer de zaagbeugel naar beneden wordt gedrukt.
De hydraulisch aangedreven 2,3 meter lange transportband transporteert het brandhout verder van het kloofmes. Ongeacht of u een door een tractor aangedreven, elektrisch aangedreven of verbrandingsmotor aangedreven JAPA 305-model als uw brandhoutprocessor kiest, uw ervaring met het verwerken van brandhout zal altijd soepel, efficiënt en veilig zijn.
| 305 TRH | 305 TR | 305 E | 305 BE | |
| Hydraulics | ||||
| Volume of hydraulic oil (l) | n.a. | 20 | 20 | 20 |
| Flow of hydraulic pump (bar.) | n.a. | 30 | 30 | 30 |
| Saw Cutting | ||||
| Hydraulic Chainsaw | Standard | Standard | Standard | Standard |
| 13" bar | Standard | Standard | Standard | Standard |
| Chain 0.325" | Standard | Standard | Standard | Standard |
| Max diameter of log (cm) | 30 | 30 | 30 | 30 |
| Max length of log (cm) | 45 | 45 | 45 | 45 |
| Sawchain Lubrication Capacity (l) | 2 | 2 | 2 | 2 |
| Log Splitting | ||||
| Splitting force | 5.6 ton | 5.6 ton | 5.6 ton | 5.6 ton |
| Automatic High-speed valve | Standard | Standard | Standard | Standard |
| Splitting knife, 2/4 | Standard | Standard | Standard | Standard |
| Splitting knife, 5 ways | Option | Option | Option | Option |
| Adjustment of the splitting knife | Standard | Standard | Standard | Standard |
| Output Conveyor | ||||
| Length 3.8 m (folding) | 3.8 m | 3.8 m | 3.8 m | 3.8 m |
| Width of the conveyor belt (mm) | 200 | 200 | 200 | 200 |
| Conveyor Drive | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Dimensions | ||||
| Height in transport position (mm) | 2700 | 2700 | 2700 | 2700 |
| Width in transport position (mm) | 2250 | 2250 | 2250 | 2250 |
| Depth (mm) | 950 | 950 | 950 | 950 |
| Weight (kg) | 434 | 490 | 540 | 540 |
| Power source | ||||
| Tractor hydraulics Oil Flow | 30 l.p.m | n.a. | n.a. | n.a. |
| Tractor PTO | n.a. | 400 r/min | n.a. | n.a. |
| Electric motor, 4.0 kW 415V | n.a. | n.a. | Standard | n.a. |
| Honda Petrol Engine | n.a. | n.a. | n.a. | *13 hp |
| 3-point linkage | 3-point linkage | Yard Tow Wheels | Road Tow with Lights |
| "Off-Road" Spec. | 305 TRH | 305 E | 305 BE |
| Hydraulics | |||
| Volume of hydraulic oil (l) | n.a. | 20 | 20 |
| Flow of hydraulic pump (bar.) | n.a. | 30 | 30 |
| Saw Cutting | |||
| Hydraulic Chainsaw | Standard | Standard | Standard |
| 13" bar | Standard | Standard | Standard |
| Chain 0.325" | Standard | Standard | Standard |
| Max diameter of log (cm) | 30 | 30 | 30 |
| Max length of log (cm) | 45 | 45 | 45 |
| Sawchain Lubrication Capacity (l) | 2 | 2 | 2 |
| Log Splitting | |||
| Splitting force | 5.6 ton | 5.6 ton | 5.6 ton |
| Automatic High-speed valve | Standard | Standard | Standard |
| Splitting knife, 2/4 | Standard | Standard | Standard |
| Splitting knife, 5 ways | Option | Option | Option |
| Adjustment of the splitting knife | Standard | Standard | Standard |
| Output Conveyor | |||
| Length 2.3 m (fixed) | 2.3 m | 2.3 m | 2.3 m |
| Width of the conveyor belt (mm) | 200 | 200 | 200 |
| Conveyor Drive | Hydraulic | Hydraulic | Hydraulic |
| Dimensions | |||
| Height in transport position (mm) | 2700 | 2700 | 2700 |
| Width in transport position (mm) | 2250 | 2250 | 2250 |
| Depth (mm) | 950 | 950 | 950 |
| Weight (kg) | 434 | 540 | 540 |
| Power source | |||
| Tractor hydraulics Oil Flow | 30 l.p.m | n.a. | n.a. |
| Electric motor, 4.0 kW 415V | n.a. | Standard | n.a. |
| Vanguard Petrol Engine | n.a. | n.a. | 14 hp |
| Off Road Tow | Off Road Tow | Off Road Tow |
Rights for technical modifications reserved. Warranty 1 year.
The maximum splitting length is 45 cm
Electric motor 4 kW or Honda* combustion engine 13 hp
A 3,8 metre (folding) or 2,3 metre (fixed) hydraulic conveyor
Machine weight 434-540 kg
